Suitable For 99% cars after 2008



High quality Automobile Vehicle HUD Rise Monitor OBD Driving Computer Speed Projector display Security A100 Simple car styling



Product Description:



Origin of: Shenzhen

Type: Onboard computer monitor

Model: A100

Applicable models: support OBD2 models

Screen Type: LED

Screen size: 3.5 inches

Appearance Size: 80 X 45 X 13 (mm)

Colour: Black

Weight: 0.3 (Kg)

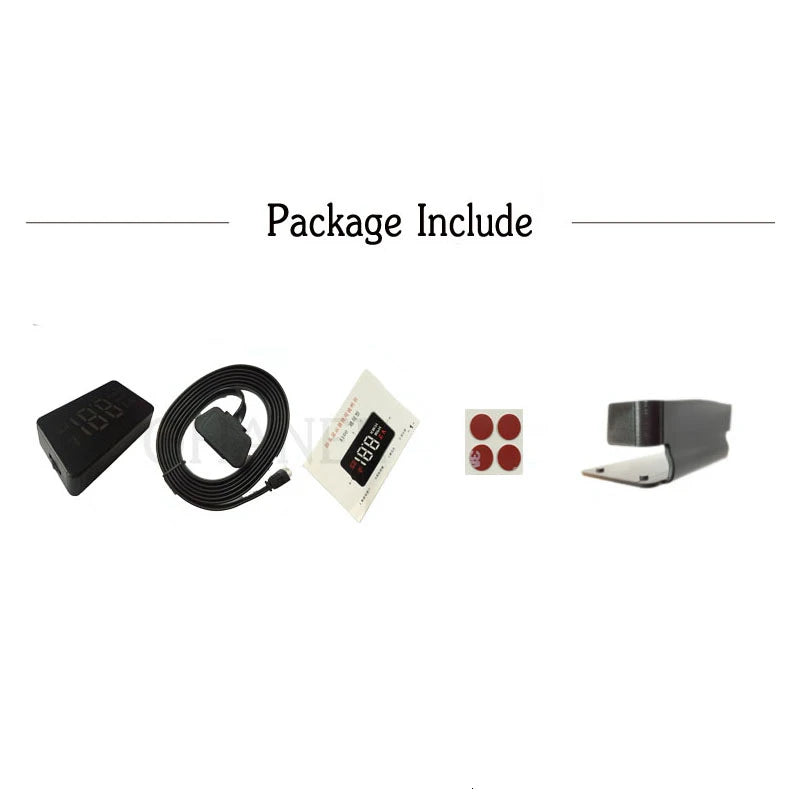

1x case

Note:Suitable for cars of the OBD interface after 2008. Some models are not supported.

suitable case for mazda after 2004

suitable case for Ford Focus after 2004

Note:

OBD2 devices are not compatible with:

1. European / American cars manufacture before 2004 and Asian cars manufactured before 2008.

2. American cars manufacture not for Dodge,not for  jeep,not for Chrysler, not for Chevrolet and all cars before 2004;

3. France cars manufacture not for FAT,not for DS, not for PEUGEOT, not for Citroen, not for Renault ，not for Simca and so on.

4. Japanese cars manufacture not for SUZUKI, not for Subaru、not for MAZDA 6）,not for  Infiniti QX50 q50 q501)、not for Lexus is250，ex250，ES300H）、not for Toyota  HIACE、RAV4  not for Honda  jazz、CRV and all cars before 2008.

5.Germany cars manufacture  not for Volkswagen  Santana3000）.

6. Korean cars manufacture not for KIA, not for Hyundai some models.

7. Oil and electricity mixing, crude oil powered car, Pick up, SUV, ORV.

A100  HUD



Automobile obd2 Vehicle HUD Rise Monitor OBD Driving Computer Speed Projector head up display Security A100 Simple car styli

  Sunshade Cover

Installation Process



Step 1: Keep the car stall and plug the OBD line into the car's OBD port

Step 2: Start the car

Step 3: Plug the other side of the OBD line into HUD



Normal mode:

Scroll down:switch the display (Speed,Water temperature and voltage)

Scroll up: Overspeed alarm Settings Pressed inward and hold :Start setting mode

Setting mode:

Scroll down:Add Scroll up: Subtract Pressed inward:Save

Pressed inward and hold :Exit setting

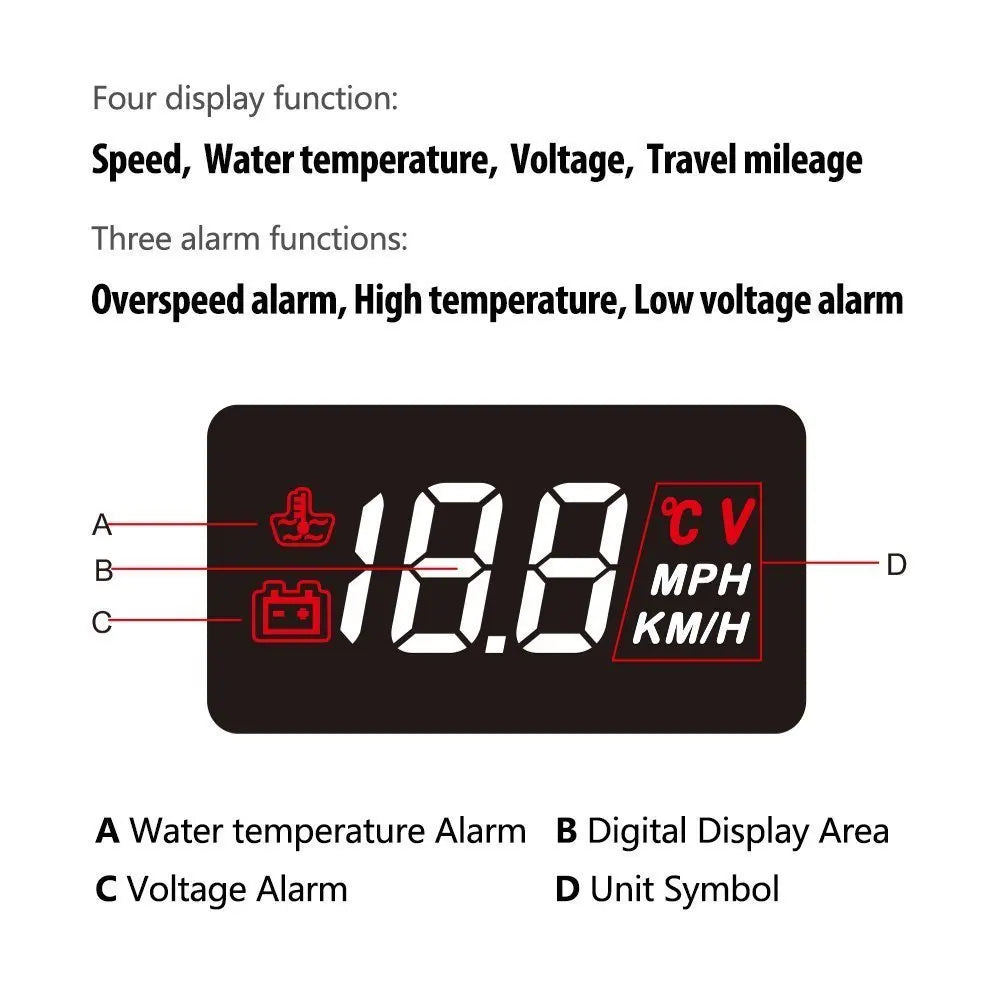

A. Water temperature Alarm                                B. Digital Display Area



C. Voltage Alarm                                                       D. Unit Symbol



Setting mode Introduction



Pressed inward and hold to Start setting mode,after entering the setting mode will display the version number and then enter the settings,at this time can be set up through the wheel up and down key to select other item,pressed inward to enter setting values,through the wheel up and down key to change setting values,pressed inward to return to set items,pressed inward and hold to save and exit the setting mode

1.Switch Metric and Imperial(1-2):The default value is 1,1:Metric,2:Imperial

2.Transport protocol selection(0-11):The default value is 0,0:Auto-Select

3.Select car category:The default value is 1,1:Normal.2:Hybrid or i-Stop

4.Speed calibration(80-120):The default value is 108,Please adjust according

5.Water temperature alarm value(90-130):The default value is 110,Please adjust according to the actual car status.)

6.Brightness(0-7):The default value is 0,0-Automatic Brightness,1-Lowest

Brightness,7-Highest Brightness.

Brightness,7-Highest Brightness.

Other Information

1.The imagers in this manual are for reference only

2.The vehicle must be in a parked position before operating the HUD

3.The HUD module is guaranteed for 1 year from purchase under normal

driving conditions.This does not include natural disasters or other

4.To avoid damage,do not clean the HUD module with chemicals

5.Accessories,Data line,and reflector film are not guaranteed

6.If the car will be parked for many days,please pul out the OBD line

7.This manual is subject to update without notice

8.OBD line of this product is limited to use this product,it is strictly prohibited for other products,or have any consequences

shall be borne by the user
